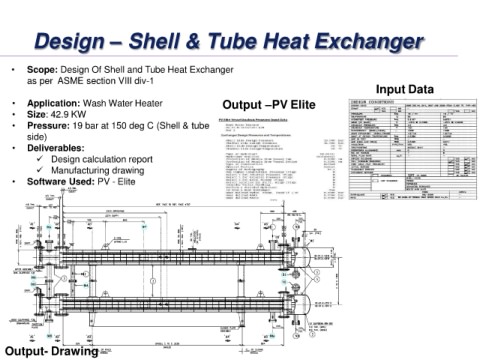

Design – Shell & Tube Heat Exchanger





    •    Scope: Design Of Shell and Tube Heat Exchanger
         as per  ASME section VIII div-1
                                                                                                                  Input Data
     •   Application: Wash Water Heater                             Output –PV Elite
     •   Size: 42.9 KW
     •   Pressure: 19 bar at 150 deg C (Shell & tube

         side)
     •   Deliverables:
             Design calculation report
             Manufacturing drawing
     •   Software Used: PV - Elite






























  Output- Drawing
